TCO216-C

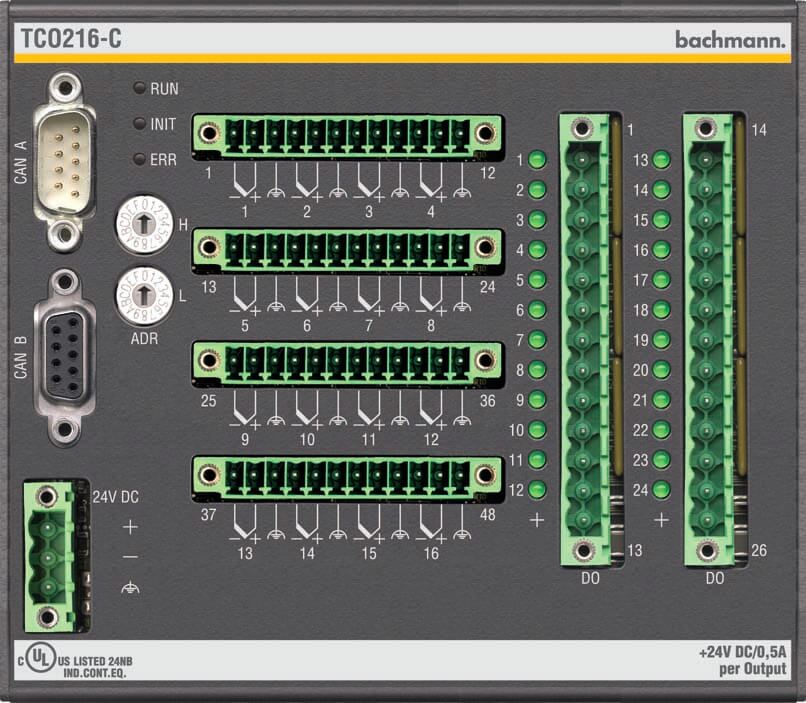

Bachmann TCO216-C | CAN Slave - Temperature input/digital output module
Ask for quoted price.
Bachmann TCO216-C | CAN slave temperature input/digital output module
- 16x thermocouple type J - K
- 24x digital Out 24V / 0,5A
- CAN/CANopen
- 2x DSUB 9 (In/Out)
- Up to 1Mbit/s
- Isolated
Bachmann TCO216-C | CAN slave temperature input/digital output module
- Stand-alone, compact CAN slave module
- Thermocouple inputs for thermocouple types J and K
- Measuring range 0 to +500°C/ +800°C configurable
- Sensor break detection
- Digital outputs each with 1 A
- Supply voltage 18 to 34 VDC
- Operating range 0 to +60°C
- Snappable on EN 50022 backplanes
- CAN node ID can be set (hex switch)
- Baud rate is adjustable (hex switch)
Please do refer to the product sheet for more details.
- Download PDF:
Product sheet from Bachmann electronic GmbH
