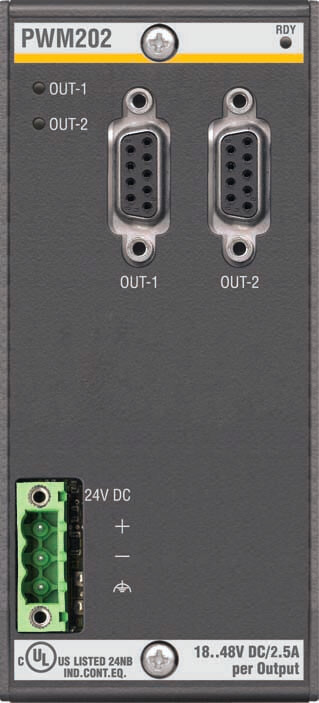

PWM202
Bachmann PWM202 | Pulse width modulation module
Ask for quoted price.
Bachmann PWM202 | Pulse width modulation module
- Motor control module for DC motors and inductive aktuators
- 2 channels
- Each 2A/48V or TTL
- Up to 40kHz pwm
- Position or current controlled
- Isolated
Bachmann PWM202 | Pulse width modulation module
- 2 pulse-width modulated output channels
- 2 shielded DSub connectors for output channels
- Status indication: LED (green) per output
- Choice of high-power or TTL output level
- Monitoring of the load current
- Monitoring of the external supply voltage
- Monitoring of the internal temperature
Please do refer to the product sheet for more details.
- Download PDF:
Product sheet from Bachmann electronic GmbH
